Pad Printing Techniques and Applications in Eyewear Manufacturing

Pad Printing Techniques and Applications in Eyewear Manufacturing

Pad printing is one of the most common methods for printing logos, text, and designs on eyewear frames. Its versatility allows for precise and detailed prints, even on curved or irregular surfaces, making it ideal for a variety of eyewear materials. In this article, we’ll explore the applications of pad printing on eyewear, the detailed process involved, and its advantages and disadvantages.

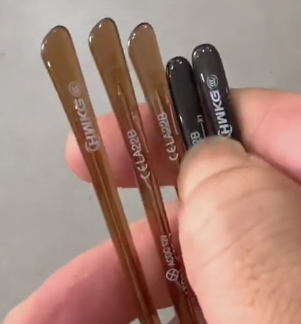

Pad printing is widely used for printing logos, model numbers, size information, and decorative patterns on different parts of eyewear frames. Whether on the inner temples, hinges, or other small areas, pad printing ensures high-quality results. This technique is particularly suitable for various materials, such as acetate, injection-molded plastic, and TR90. Its ability to print on non-flat surfaces makes it the preferred method for adding small but important branding elements to eyewear.

The pad printing process on eyewear typically involves the following steps:

• Engraving the Steel Plate:
  The process starts by engraving the desired design onto a steel plate (also known as the cliché). The design is etched into the plate using either chemical etching or laser engraving, creating grooves where the ink will later be applied.

• Setting Up the Machine and Positioning:
  The steel plate is then mounted onto the pad printing machine. A positioning mold is also prepared for the eyewear frame to ensure that the print is applied in the correct location every time.

• Applying Ink:
  Special pad printing ink is applied to the steel plate, filling the engraved grooves. A doctor blade then removes excess ink from the surface, leaving the ink only in the design’s grooves.

• Ink Transfer:
  A soft silicone pad, which is highly flexible, presses onto the inked plate and picks up the ink from the engraved grooves. The pad then moves to the eyewear frame and presses down, transferring the ink onto the frame. The pad’s flexibility allows it to conform to the shape of the eyewear, even on slightly curved or uneven surfaces.

• Drying and Curing:
  After the ink is transferred, the eyewear is left to dry, allowing the ink to firmly adhere to the frame. Depending on the ink and process, additional curing may be required to ensure long-lasting adhesion.

Pad printing is highly valued in the eyewear industry due to several key benefits:

• Rich Color Options:
  Pad printing can accommodate a wide range of colors, which is particularly useful for brands that require vibrant, multicolored logos or designs. This flexibility allows for more creative and customized designs.

• Precise Small Text and Designs:
  One of the standout features of pad printing is its ability to print very small and intricate designs, making it ideal for eyewear, where limited space is available for branding and markings.

• Versatility on Complex Surfaces:
  The soft silicone pad used in the process adapts easily to the frame’s surface, whether it is flat, curved, or has subtle undulations. This makes it perfect for printing on curved temples or irregularly shaped parts of the eyewear.

Despite its many advantages, pad printing also comes with a few limitations:

• Lower Durability:
  While pad printing provides crisp and high-quality prints, the ink may not be as durable as other methods, such as laser engraving or hot stamping. With frequent use or exposure to friction, the print may gradually wear off, especially on areas like the temple arms that come into regular contact with the skin.

• Limited to Small Surface Areas:
  Pad printing is most effective on small areas. For larger surfaces or highly detailed designs that cover significant portions of the frame, pad printing may struggle to maintain consistent ink application and clarity.

• Surface Restrictions:
  Although pad printing can handle slightly curved or irregular surfaces, it performs best on relatively smooth areas. On extremely textured or highly intricate surfaces, the ink transfer may not be as uniform or precise, potentially leading to imperfections in the design.

Pad printing remains one of the most versatile and commonly used printing methods in the eyewear industry. Its ability to print fine details on small, curved surfaces, along with its extensive color options, makes it a valuable tool for eyewear manufacturers. However, while it excels in printing small logos and text, it may not be the best choice for larger or more complex designs, and its durability can be a concern in high-wear areas.

As technology advances, pad printing will likely continue to play a key role in enhancing the aesthetic appeal and brand identity of eyewear products. By understanding its capabilities and limitations, eyewear manufacturers can make the best use of this printing technique to create high-quality, well-branded frames that meet consumer expectations.
