How to Distinguish Between Injection-Molded and Acetate Eyewear?

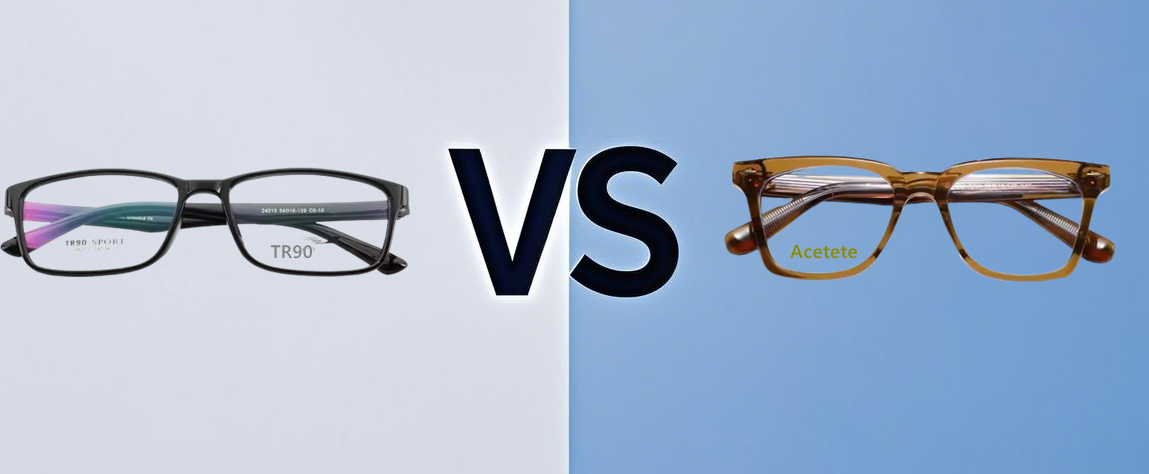

Eyewear materials play a crucial role in determining comfort, durability, and overall aesthetics. Among plastic frame options, injection-molded eyewear and acetate eyewear are the most common, but due to their similar appearance, many people struggle to differentiate them.

In reality, these two materials have significant differences in manufacturing processes, structural design, visual effects, and even sound characteristics. This article will introduce their basic features and provide six simple methods to help you quickly distinguish between them.

1. Injection-Molded vs. Acetate Eyewear: An Overview

Before diving into the identification methods, let’s first understand their fundamental properties.

Injection-Molded Eyewear

• Common Materials: TR90, PC (Polycarbonate), CP (Co-Polyester), Nylon, etc.

• Manufacturing Process:

  • Uses injection molding, where plastic pellets are melted and injected into a mold, then cooled to form the frame.

  • The frames are formed in one piece, making production fast and efficient.

• Key Features:
  ✅ High production efficiency and lower cost
  ✅ Lightweight, with some materials (e.g., TR90) being flexible and impact-resistant
  ✅ Fixed structure, usually cannot be adjusted by heating
  ✅ Colors are applied through coating or spraying, usually lacking layered color effects

Acetate Eyewear

• Common Material: Cellulose Acetate

• Manufacturing Process:

  • Frames are cut, carved, polished, and assembled from multiple layers of acetate sheets.

  • More manual processing is involved, making production more complex but resulting in better texture and durability.

• Key Features:
  ✅ Richer colors, allowing for multi-layered color effects
  ✅ Flexible and can be adjusted by heating, providing better comfort
  ✅ Heavier, offering better stability and long-term shape retention

2. How to Identify Injection-Molded vs. Acetate Eyewear?

① Check the Temples – Presence of Metal Core

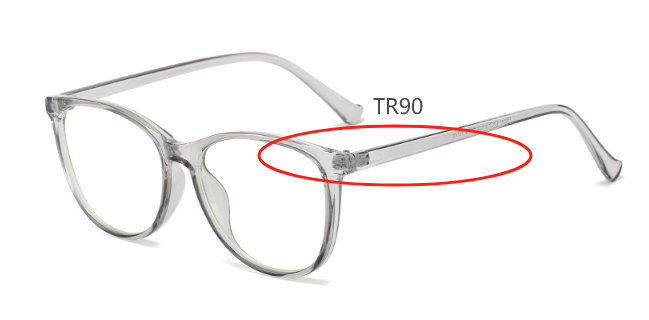

• Injection-Molded Frames: Most do not have a metal core, and the temples are shaped directly through molding. The angle of the temple bend is fixed.

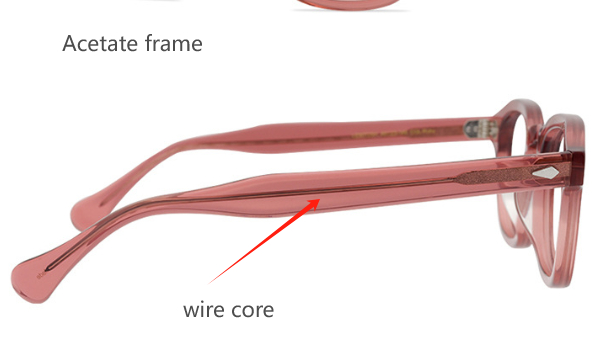

• Acetate Frames: Most contain a metal core for extra reinforcement, making the temples sturdier. If the temple is a dark color and the core is not visible, check the cross-section at the cut end for a metal insert.



② Check the Nose Pads – One-Piece vs. Separate Attachment

• Injection-Molded Frames: The nose pads are part of the frame, molded as a single piece, usually the same color as the frame.

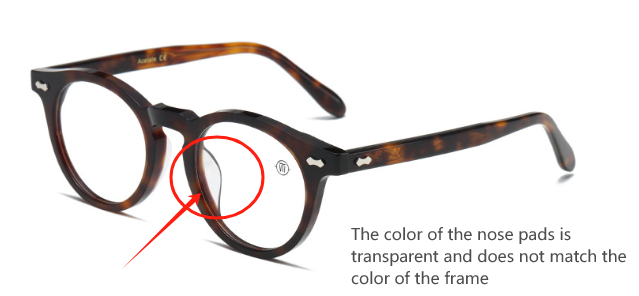

• Acetate Frames: The nose pads are typically attached separately and may have a different color from the frame.

How to check:
Look closely at the nose pads. If there are no seams or differences in material, it is likely injection-molded. If the nose pads appear to be attached separately or are a different color, it is likely acetate.

③ Check the Color Layers – Single-Layer vs. Multi-Layer

• Injection-Molded Frames: The color is typically painted or coated onto the surface, making it difficult to achieve multi-layered color effects.

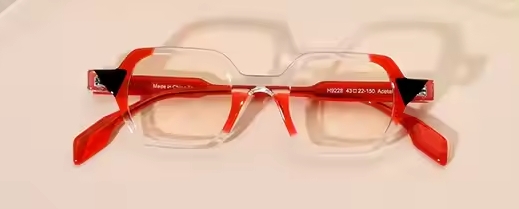

• Acetate Frames: The colors come from laminated acetate sheets, allowing for complex patterns, gradients, or layered effects.

How to check:
Look at the side of the frame. If the colors appear in multiple distinct layers, it is acetate. If the color is uniform with no layering, it is likely injection-molded.

④ Check the Glossiness – Coated vs. Natural Shine

• Injection-Molded Frames: The shine often comes from a coating applied to the surface, sometimes appearing slightly artificial.

• Acetate Frames: The material itself has a natural luster, which looks deeper and richer over time.

⑤ Listen to the Sound – Sharp vs. Dull Knock

• Injection-Molded Frames: Due to the lower material density, tapping the frame produces a higher-pitched, more plastic-like sound.

• Acetate Frames: The denser material gives off a duller, more solid sound when tapped.

⑥ Check the Weight – Lightweight vs. Heavier Feel

• Injection-Molded Frames: Lighter in weight due to the nature of plastic materials like TR90 or PC.

• Acetate Frames: Denser and heavier, providing a more premium and sturdy feel.

By using these six simple methods, you can easily distinguish between injection-molded and acetate eyewear, helping you make informed choices based on your needs and preferences!
